XOHimitsuOX

Prototype Horns (Finished)

Recommended Posts

XOHimitsuOX
Posted (edited)

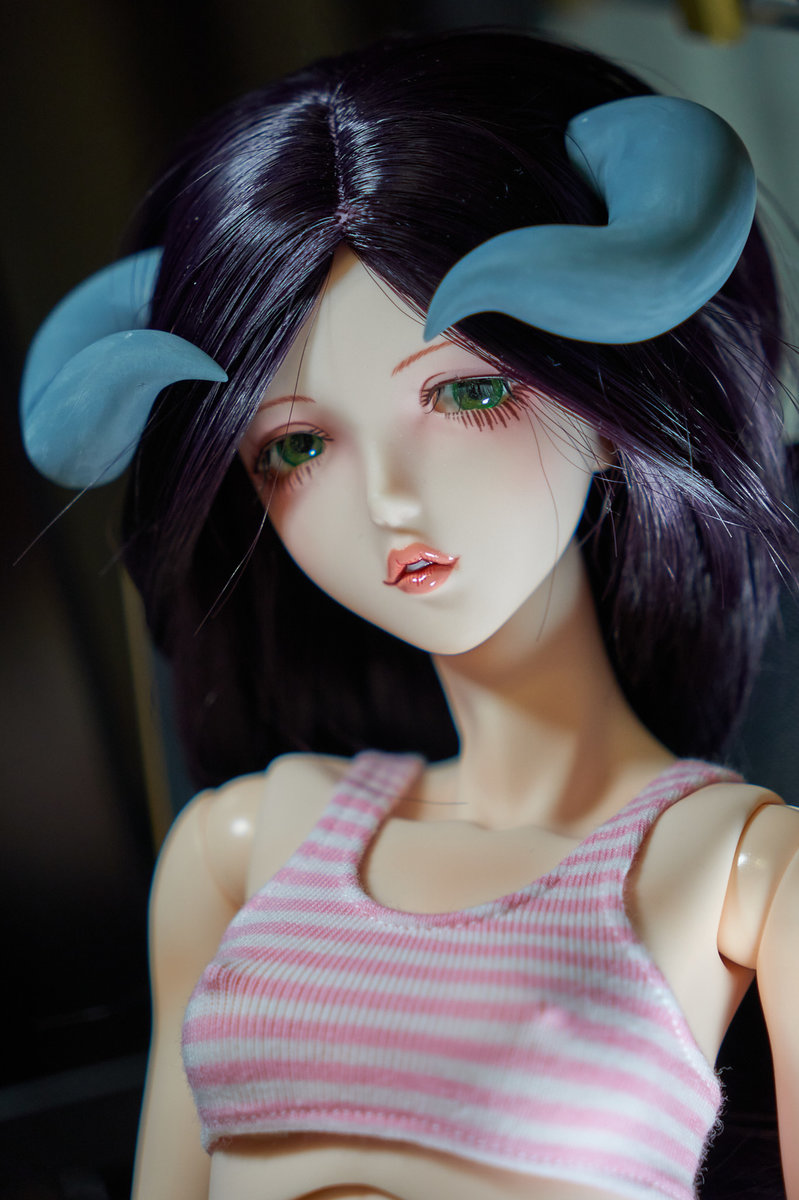

I just upgraded to a resin 3D printer and decided to try to make a pair of horns. I used Albedo as a reference and here are the results. I need to make a few adjustments for the next version.

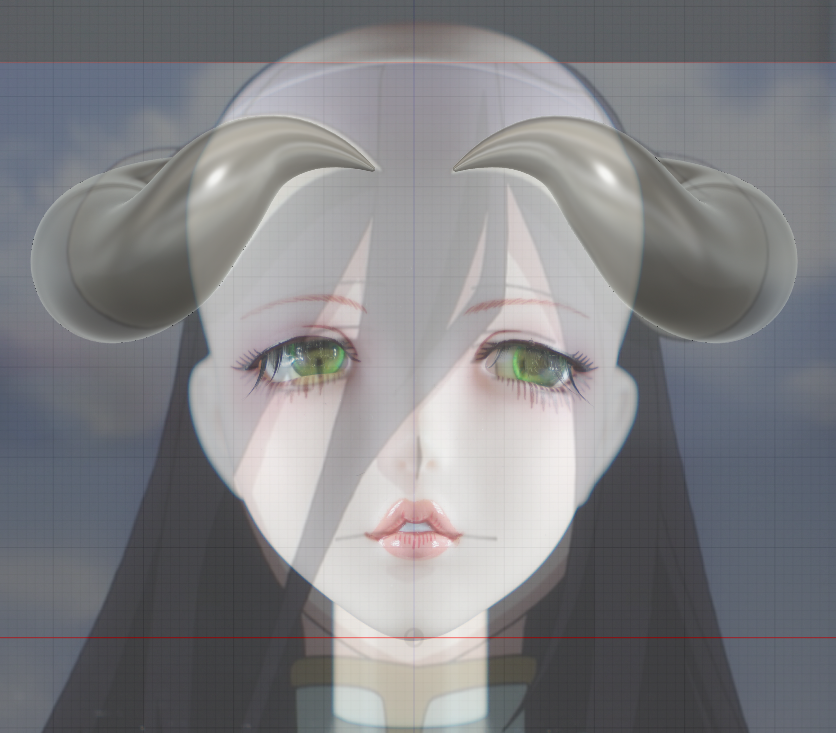

Screenshot 2022-08-09 234805.png

Screenshot 2022-08-09 234916.png



Edited by XOHimitsuOX
  • Like 7

Share this post


Link to post
Share on other sites
Testament

Sky is the limit.



I love horns on my girls, Albedo is a good reference <3

  • Like 1

banner%2Bb%2Band%2Bm%2B1200%2Bpx%2Bcon%2

Share this post


Link to post
Share on other sites
MagicalRozen

I'm so happy your resin printer came in! The horns look great! 💕 I am always blown away by your skill and creativity!


Estelle, Delilah, Khepra, Ryomou, Mushi, CloverEllie, Aster, Plum, Uta, Yuhe, Glitch, And Others That May Come And Go


Share this post


Link to post
Share on other sites
XOHimitsuOX
6 hours ago, MagicalRozen said:

I'm so happy your resin printer came in! The horns look great! 💕 I am always blown away by your skill and creativity!

Thanks, another topic that I can talk about on our next meet 😛

  • Like 1
  • Haha 2

Share this post


Link to post
Share on other sites
XOHimitsuOX

Took me 4 revisions to get to something that I'm satisfied with.

Ver.1

Weight of a each horn: 9.19g / Hollowed using slicer

Issues: Horns tilting downwards as the sides were flat and horns too short




Ver.2

Weight of a each horn: 15.18g / Solid print

Changes: Added spikes to try to prevent horns tilting downwards & made horns longer

Issues: Spikes were visible and still tilts downwards & still too short




Ver.3

Weight of a each horn: 17.13g / Solid print

Changes: Added larger magnet and made spikes smaller & made horns longer

Issues: Horns still tilt downwards, small spikes had no effect & point of contact were the magnets and hair which had no friction. Tips of horns needed to be pulled inwards

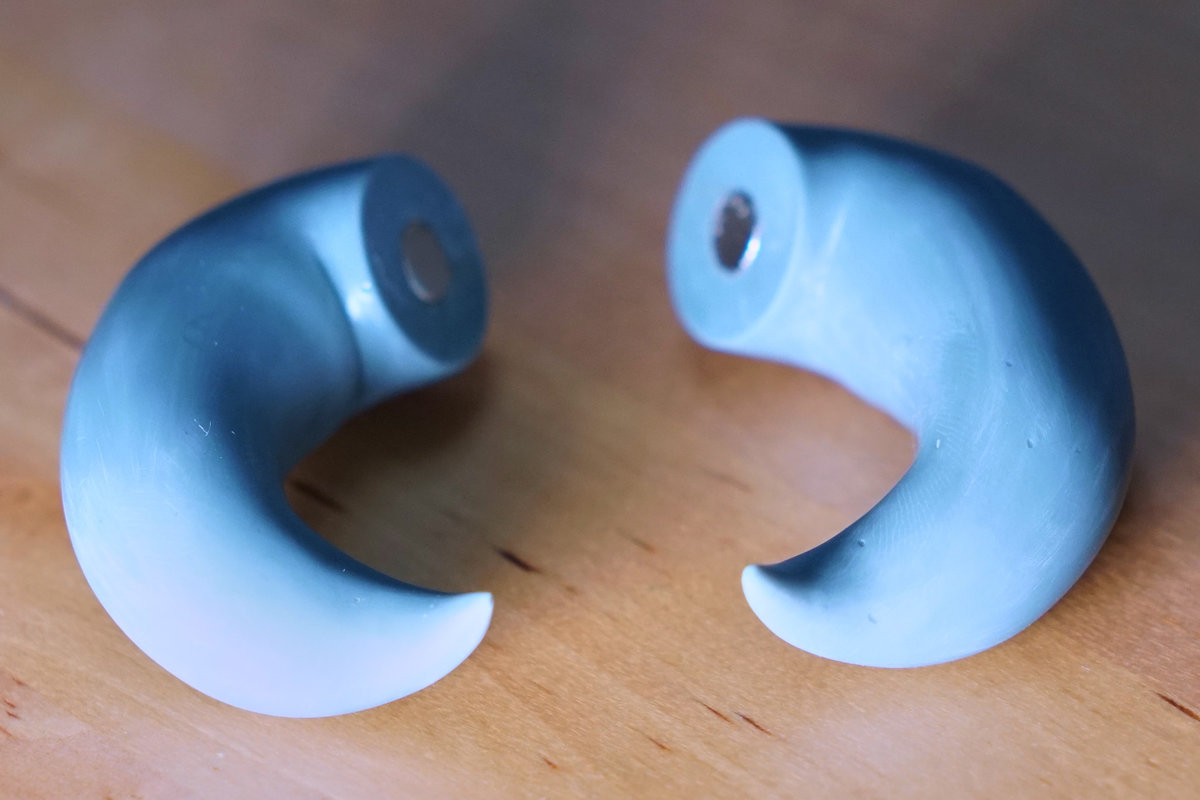

Ver.4 (Final Ver)

Weight of a each horn: 10.9g / Model hollowed out in Fusion 360

Changes: Hollowed out model, inserted magnet on the inside and increased the size of teeth and teeth surface area. Adjusted the model slightly.




  • Like 6
  • Thanks 1

Share this post


Link to post
Share on other sites
Rajke

Love the result and it is nice you reached the final result in 4 versions.
Looks also very professional.

@onion20@

  • Like 1

Share this post
